Nominal Size: 8″ID x 6″ OAL
Flange: 8″ 150 lb floating
Face to Face Dimension: 6″
Lateral Deflection: (+/- 1/2″)
Axial Extension: ½”
Axial Compression: ¾”
Angular Deflection: 7 degrees
Working Pressure: 225 psig
Maximum Vacuum: 26″ Hgg
Temperature Range: 20 to 250°F
Body Construction: EPDM
Flange OD: 13.5″
Bolt Circle Diameter: 11.75″
Number of Bolt Holes: 8
Bolt Hole Diameter: 0.875″
Recommend Bolt Diameter: 0.75″

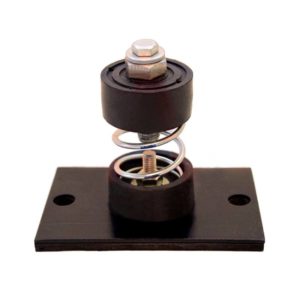

Laterally supported, housed spring type isolator with telescoping equipment support plate, leveling bolt and hold-down nut for attaching equipment.
Springs are supported with a cup on a metal base plate complete with a ribbed neoprene vibration isolation pad, 1/4″ (6 mm) thick, bonded to the base plate.
Steel telescoping housing incorporates neoprene stabilzers that prevent metal-to-metal contact while resisting movement and provides vertical damping.
Minimum 50% additional travel to solid
Minimum kx/ky ratio of 0.8

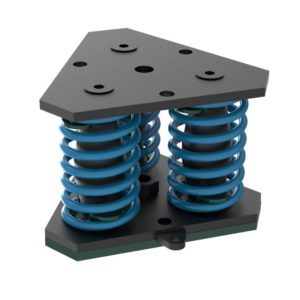

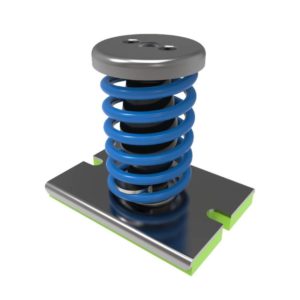

Open Spring Mount comprising laterally stable spring assembled into an upper & lower steel reinforced molded elastomeric load plate and with leveling assembly.
APPLICATION
It is used to isolate sources of noise and vibration of floor mounted equipment.
Reciprocating Air or Refrigeration Compressors
Internal Combustion Engines
Close Coupled & Base Mounted Pumps
Centrifugal Fans

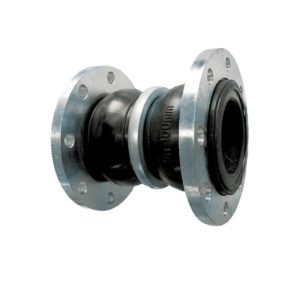

Constructed from nylon fabric-reinforced neoprene body with forged carbon steel flanges.
Excellent for use with moderate chemicals, most oils, fats, grease, and many solvents.
Features
Non-skid neoprene acoustical isolation pad
Free and operating height
Top access adjustment bolt turn clockwise to load spring and maintain free and operating height
Bolt length is suitable for 1″ maximum Equipment Base thickness

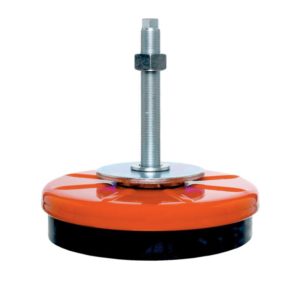

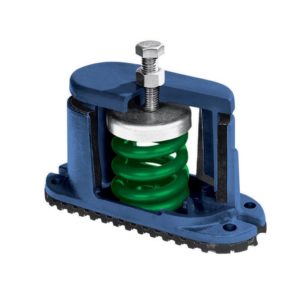

The M-Series OSM vibration mount is designed for use on machinery that does not require fastening to the floor. It has been designed with the aid of FEM analysis, which prevents fatigue from fast working cycle times and strong lateral forces in heavy machinery.
Replacing the M-series mount is easy – simply unscrew and slide the mount under the machine. The reinforced leveling bolt support cup distributes machine loads to the support points within the mount. The leveling element provides direct and reliable machine mounting to suit most installation needs.
Vertical as well as horizontal forces are dampened out by the integral nitrile pad, which also provides chemical resistance to most fluids.

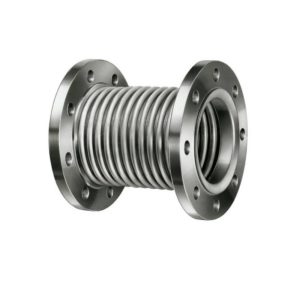

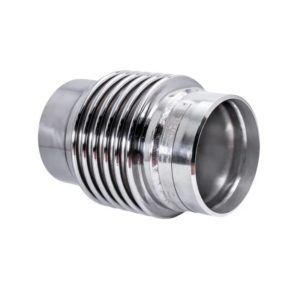

Available in numerous configurations, metal expansion joints can be used in temperatures ranging from -420° to 1,800°F (-251° to 982°C) and pressures up to 1,000 psi.
High tensile steel with sylomer anti-slide base.
These are used in sectors such as air compressors, pump and pumping equipment and acoustic isolation of premises.

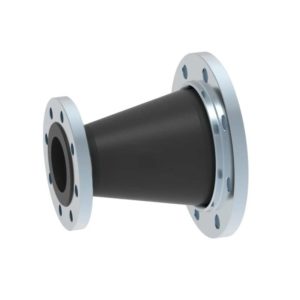

Conical lateral expansion joint DN 25 – DN 250 · PN 6/10/16 Lateral expansion joint consisting of a conical rubber bellows without convolution and rotable flanges. Synthetic fibre reinforcement.
Applications:
for compensating lateral movement to improve the flow of media (smooth passage) for deposit-free passage of solid matter, e.g. at pumps for gypsum suspension for muffling vibration and noise as conical elastic reducing piece at
• pumps
• pipelines
• motors ventilating fans/blowers
• cooling water lines cement industry conveyance technology

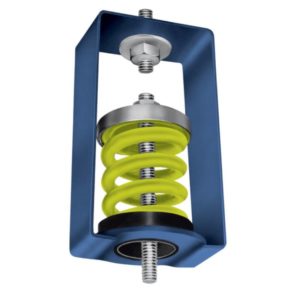

Hanger for suspending equipment, pipe, or duct work from a ceiling to isolate vibration and noise
Arc-welded steel hanger box for strength and durability
Bridge-bearing natural rubber spring cup for low dynamic stiffness to minimize noise and vibration
Heavy-duty steel spring for absorbing shock and supporting loads
High tensile steel with sylomer anti-slide base.
The sylomer mat that these dampers incorporate, isolates the mid-high frequency vibrations which are transmitted through the coils of the metal springs.
These are used in sectors such as air compressors, pump and pumping equipment and acoustic isolation of premises.
It can be equipped with carbon steel or stainless steel pipe connections.
Even though they can absorb movements in any direction, this model is mainly used for axial movements. If lateral movement is requested, a universal type may be more suitable. These type of expansion joints can be supplied with limit liners, covers, rods, hinges or gimbals.
Available for exhaust gas, liquid medium and steam. Bellows are calculated following latest EJMA standards. Also, weld end type expansion joints may have a double bellows which are designed for absorbing the higher lateral movements.
